Product Details
Place of Origin: Shandong
Brand Name: SDJG
Certification: CE EPA EURO5
Model Number: JG 08 12
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD8000-USD10000/set
Packaging Details: 1. non-fumigation wooden box for LCL 2. Loaded in container directly for FCL
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Rated Power: |
37kw |
Operating Weight: |
2400kg |
Bucker Capacity: |
0.3m³ |
Loading Lifting Capacity: |
1000kg |
Bucket Dumping Height: |
2300mm |
Backhoe Capacity: |
0..08m³ |
Max.Digging Depth: |
1400mm |
Gears: |
2F+2R |
Rated Power: |
37kw |
Operating Weight: |
2400kg |
Bucker Capacity: |
0.3m³ |
Loading Lifting Capacity: |
1000kg |
Bucket Dumping Height: |
2300mm |
Backhoe Capacity: |
0..08m³ |
Max.Digging Depth: |
1400mm |
Gears: |
2F+2R |

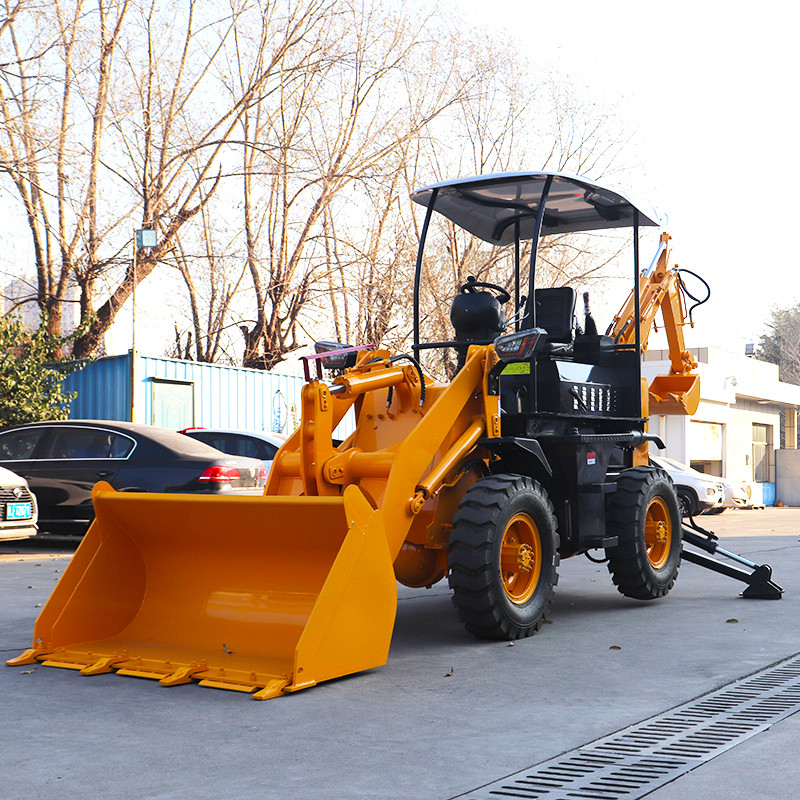

Backhoe loader is a kind of multifuntional machine which combine wheel loader and excavator togther. Due to its (relatively) small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.)
| Model | JG06-10 | JG08-12 (No Tail) | JG08-12 | JG10-20 |
| Dimensions | 5000*1150*2800mm | 4700*1400*2550mm | 5100*1350*2580mm | 5500*1750*2650mm |
| Operating Weight | 1800kg | 2400kg | 2500kg | 3400kg |
| Wheel Drive | 4x4 | 4x4 | 4x4 | 4x4 |
| Tire Model | 26x12-12 | 10-16.5 | 825-16 | 20.5-16 |
| Transmission Type | Hydrostatic, Automatic | Hydraulic, Automatic | Hydraulic, Automatic | Hydraulic, Automatic |
| Engine | ||||
| Engine Power | 18.2kw | 37kw | 37kw | 37kw |
| Cylinder Number | 3-cylinder | 4-cylinder | 4-cylinder | 4-cylinder |
| Engine Type | Diesel, 4-stroke, Water Cooling | |||
| Loading Performance | ||||
| Rated Load | 600kg | 1000kg | 1000kg | 1500kg |
| Bucket Capacity | 0.2m3 | 0.3m3 | 0.4m3 | 0.5m3 |
| Bucket Width | 1150mm | 1300mm | 1300mm | 1800mm |
| Max. Dumping Height | 2000mm | 2300mm | 2200mm | 2800mm |
| Digging Performance | ||||
| Bucket Capacity | 0.08m3 | 0.08m3 | 0.08m3 | 0.1m3 |
| Bucket Width | 400mm | 400mm | 350mm | 400mm |
| Max. Digging Depth | 2400mm | 1400mm | 1500mm | 2000mm |
| Model | JG15-26D | JG15-26 | JG20-28 |
| Dimensions | 5800*1850*2600mm | 5800*1850*2750mm | 6200*1960*2800mm |
| Operating Weight | 4000kg | 4800kg | 5400kg |
| Wheel Drive | 4x4 | 4x4 | 4x4 |
| Tire Model | 20.5-16 | 23.5-16 | 16/70-20 |
| Transmission Type | Hydraulic, Automatic | Hydraulic, Automatic | Hydraulic, Automatic |
| Engine | |||
| Engine Power | 58kw | 58kw | 76kw |
| Cylinder Number | 4-cylinder | 4-cylinder | 4-cylinder |
| Engine Type | Diesel, 4-stroke, Water Cooling | ||
| Loading Performance | |||
| Rated Load | 1800kg | 2000kg | 2500kg |
| Bucket Capacity | 0.5m3 | 0.7m3 | 1m3 |
| Bucket Width | 1800mm | 1900mm | 2100mm |
| Max. Dumping Height | 3200mm | 3300mm | 3500mm |
| Digging Performance | |||
| Bucket Capacity | 0.13m3 | 0.2m3 | 0.2m3 |
| Bucket Width | 460mm | 600mm | 600mm |
| Max. Digging Depth | 2400mm | 2700mm | 2600mm |
| Model | JG25-30 | JG388 | JG388H |
| Dimensions | 6500*2040*2800mm | 6120*2410*3763mm | 6450*2400*3940mm |
| Operating Weight | 6500kg | 8000kg | 8000kg |
| Wheel Drive | 4x4 | 4x4 | 4x4 |
| Tire Model | 16/70-20 | R: 14-17.5, R: 19.5L-24 | 16.9-28 |
| Transmission Type | Hydraulic, Automatic | Hydraulic, Automatic | Hydraulic, Automatic |
| Engine | |||
| Engine Power | 92kw | 92kw | 91kw |
| Cylinder Number | 4-cylinder | 4-cylinder | 4-cylinder |
| Engine Type | Diesel, 4-stroke, Water Cooling | ||
| Loading Performance | |||
| Rated Load | 3000kg | 2500kg | 3000kg |
| Bucket Capacity | 1.2m3 | 1m3 | 1.7m3 |
| Bucket Width | 2200mm | 2300mm | 2400mm |
| Max. Dumping Height | 3500mm | 2700mm | 3100mm |
| Digging Performance | |||
| Bucket Capacity | 0.25m3 | 0.3m3 | 0.35m3 |
| Bucket Width | 700mm | 700mm | 700mm |
| Max. Digging Depth | 2600mm | 3800/4500mm | 4100mm |
