Home > products > Mini Hydraulic Excavator > 3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine

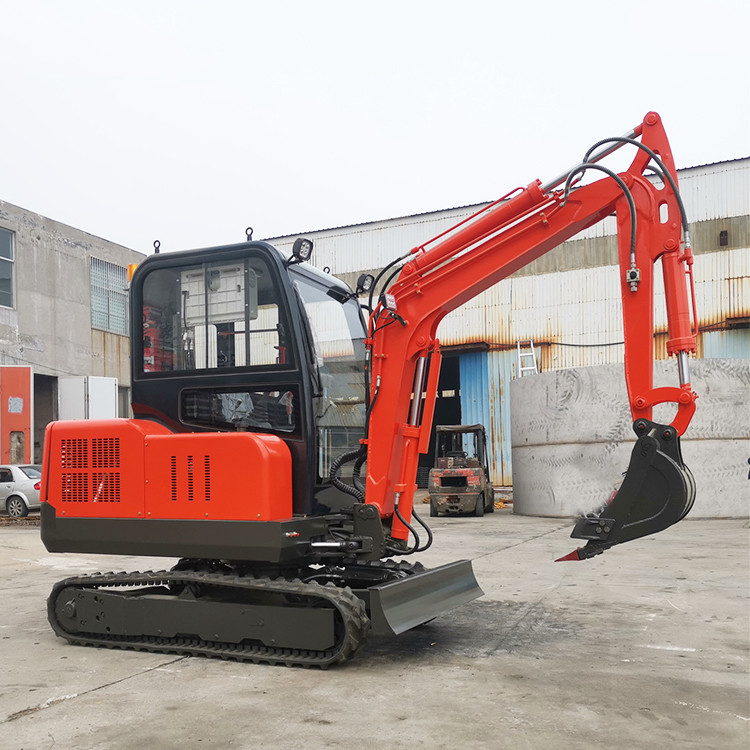

3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine

Product Details

Place of Origin: Shandong

Brand Name: SDJG

Model Number: 30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD11029-USD12058/set

Packaging Details: 1. non-fumigation wooden box for LCL 2. Loaded in container directly for FCL

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T

Supply Ability: 1000 sets per month

Get Best Price
Highlight:

3000kg Small Crawler Excavator

,

Small Crawler Excavator Machine

,

Hydraulic Pilot Mini Digging Machine

Condition:
New
Engine:
Changchai
Power:
20KW
Bucket Capacity:
0.09m³
Color:
Customize
Chassis Width:
1350mm
Digging Height:
3200mm
Digging Depth:
2500mm
Digging Radius:
3200mm
Overall Size:
3000*1350*2650mm
Weight:
3000kg
After-sales Service Provided:
Video Technical Support, Online Support
Attachments:
Digger, Fork, Backhoe, Auger, Log Grapple, Rake, Ripper, Break Hammer Etc.
Condition:
New
Engine:
Changchai
Power:
20KW
Bucket Capacity:
0.09m³
Color:
Customize
Chassis Width:
1350mm
Digging Height:
3200mm
Digging Depth:
2500mm
Digging Radius:
3200mm
Overall Size:
3000*1350*2650mm
Weight:
3000kg
After-sales Service Provided:
Video Technical Support, Online Support
Attachments:
Digger, Fork, Backhoe, Auger, Log Grapple, Rake, Ripper, Break Hammer Etc.
3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine



· Beautiful appearance,high configuration,superior performance,low fuel consumption,wide operating

range.

· Multipurpose: losingsoil of vegetable greenhouse,campus greening of municipal departments,digging

the hole for tree planting of Fruit-land Nurseries concrete pavement crushing,sand-gravel material mixing,

construction work in the narrow place etc...

· It can reduce maintenance and operating costs liberate the workforce. Improve the mechanization, Iow

investment,high return.



3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 0

PARAMETERS
Model SDJG-30
Operating Weight 3000kg
Digging bucket capacity 0.09m³
Bucket width 500mm
Engine Changchai
Rated power 20kw
Travel speed 4km/h
MAIN DEMENSIONS
Overall dimension( LxWxH) 3000*1350*2650mm
Total length of track 2000mm
Turning speed 8rpm
Chassis width 1350mm
Track width 230 mm
OPERATING RANGE
Max. Digging depth 2500 mm
Max. Digging height 3200 mm
Max. Digging radius on ground 3200 mm
Min. Rotation radius 1500 mm

Engine:



optional



Changchai 390 20kw



Laidong 3TE25 18.4kw



Perkins 403J-11 18.4kw



Product details:



3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 13000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 2





Standard crushing pipe, can be equipped with a variety

of crushing hammer, soil reducer, wood grabber, auger

and other different accessories, a multi-purpose machine;

Iron crawler and rubber crawler can be interchangeable at

any time, to adapt to various conditions of construction,

the use of deflection arm, can be easily deflected work wall

foot.

Can provide a variety of accessories, can adapt to the needs
of different countries and customers



3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 3

3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 4

3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 5

Products are widely used in indoor demolition, orchard

planting, municipal engineering, greenhouses, heaven

and earth reclamation, nursery trench fertilization,

pipeline, basement renovation, underground operations,

etc

3000kg Small Crawler Excavator Machine Full Hydraulic Pilot Mini Digging Machine 6
